Everyone has read a lot of articles on the installation of the 3-seater airport chair. Today we introduce the installation of a four-person 4 seater waiting chair.

1. To lay a good paper or linen on the ground, to avoid scratching.

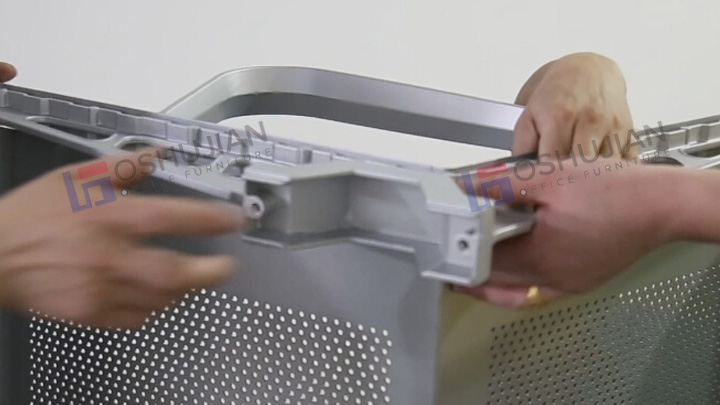

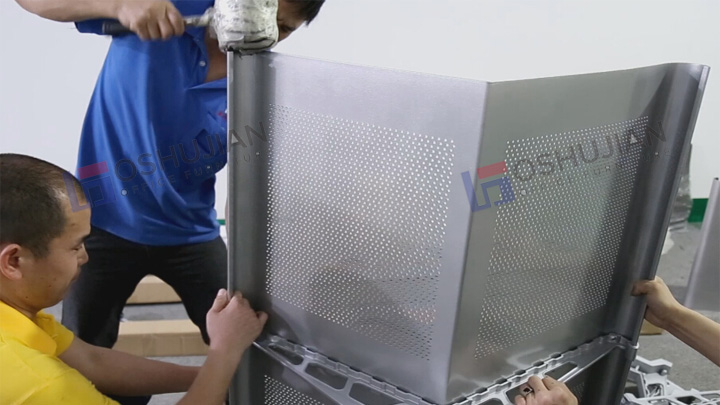

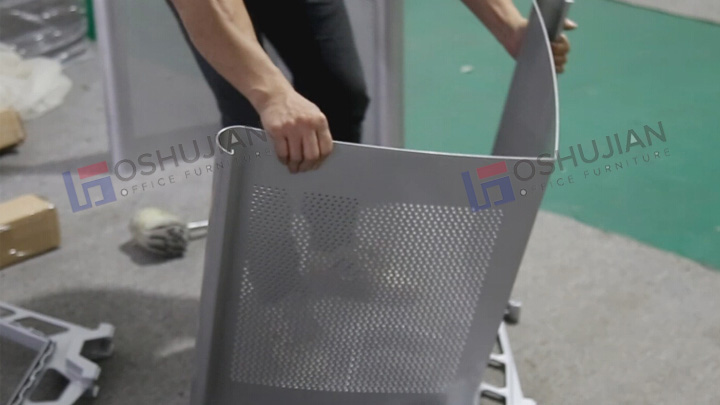

2. Align the back plate of the joint with the aluminum alloy bracket, and use a thick cloth to wrap the hammer to force the back and the bracket to merge.



3. After splicing, lock the seat plate with 8*16 tail screws.

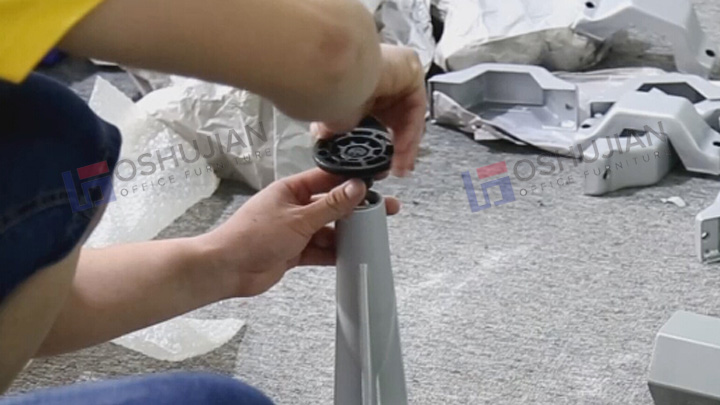

4. Tighten the adjustment foot to the position of the good foot.

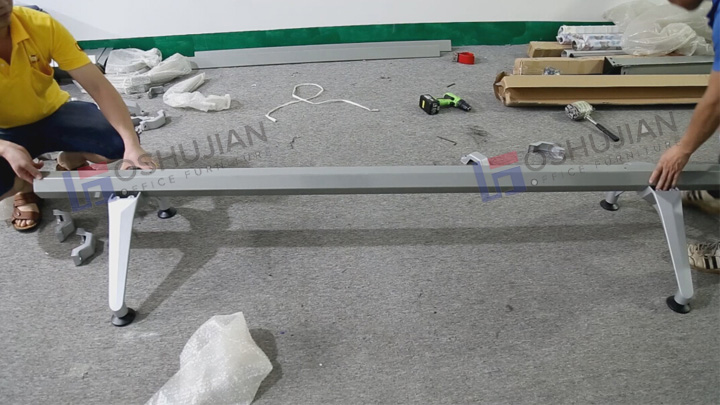

5. Combine the position of the hexagonal beam and the foot.

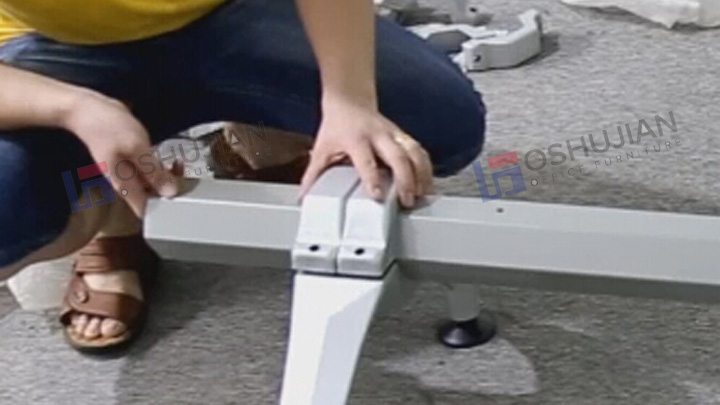

6. Add aluminum alloy fasteners to connect the hexagonal steel beam to the foot.

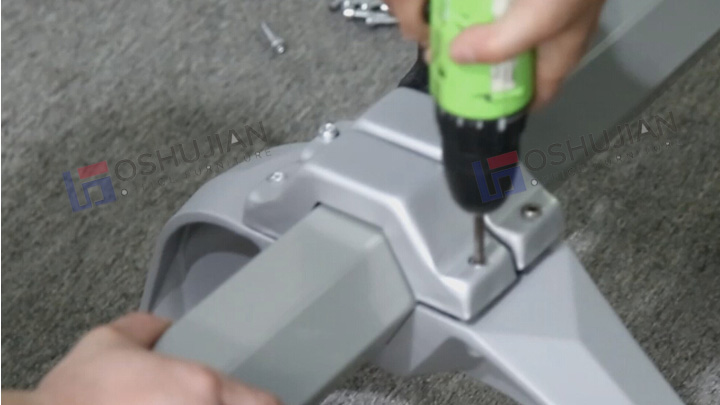

7. Use electric turn and tighten the screws.



8. Set the beam feet to the concave position of the connected seat plate.

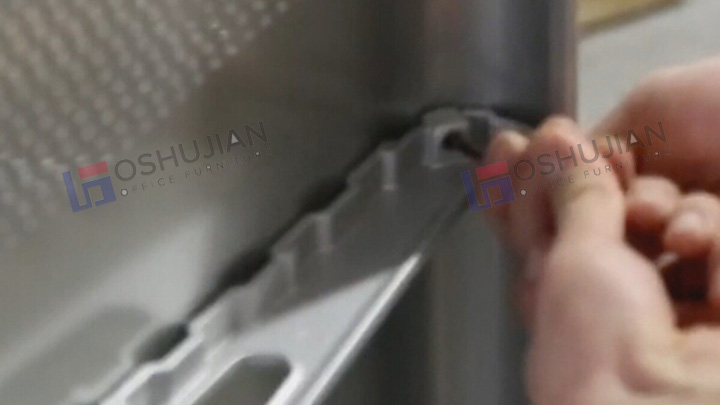

9. Then use the aluminum alloy fastener to lock the beam and the back plate together and tighten with the electric turning screw.

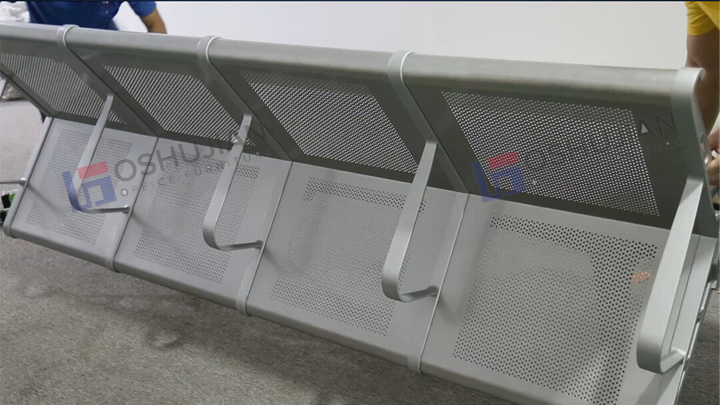

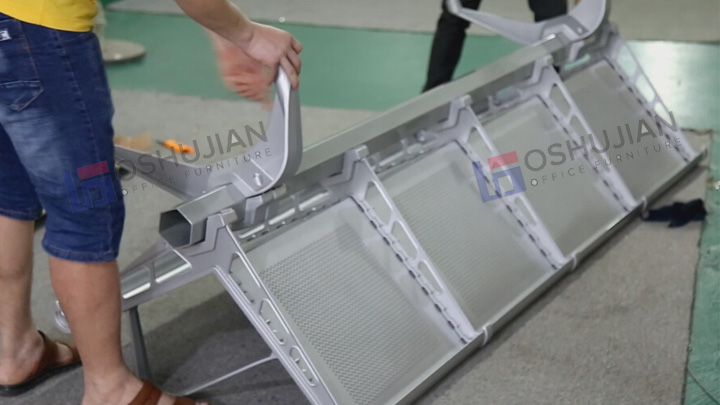

10. Turn the seat over, clean it and check the fastening.




Installation note:
(1) Because the installation method of each airport waiting chair 4 seat is different, it is necessary to check the installation diagram of the product.
(2) If you need to hit with a hammer, please remember to pack it with a thick cloth to avoid the surface of the row of chairs during the tapping process.
(3) When the position does not match during installation, do not harden it. You should contact the factory immediately for consultation.
